TBS-28002773 NiCd 3.6V 4.5Ah Battery Kit: 3DH4-5T4-TR34, End Caps, Lead Set (Tridonic 28 002 773)

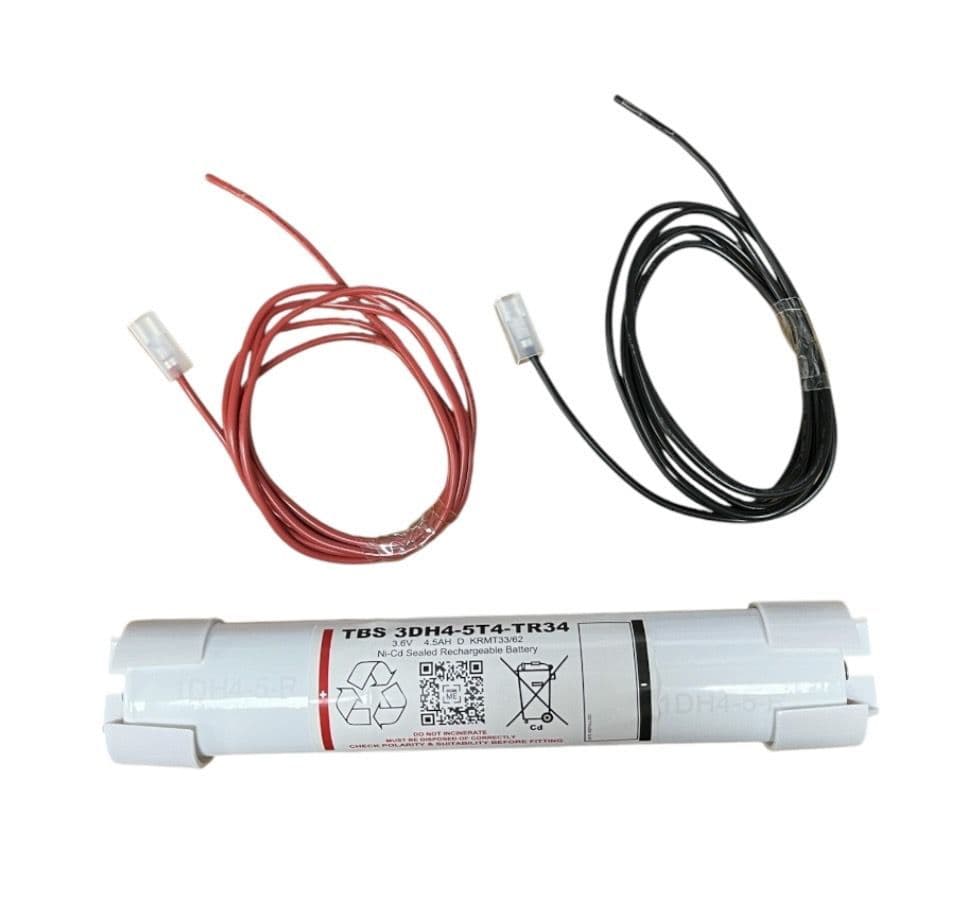

3 D cell stick with raised 4.8mm wide tags, comes with red and black lead set and end caps.

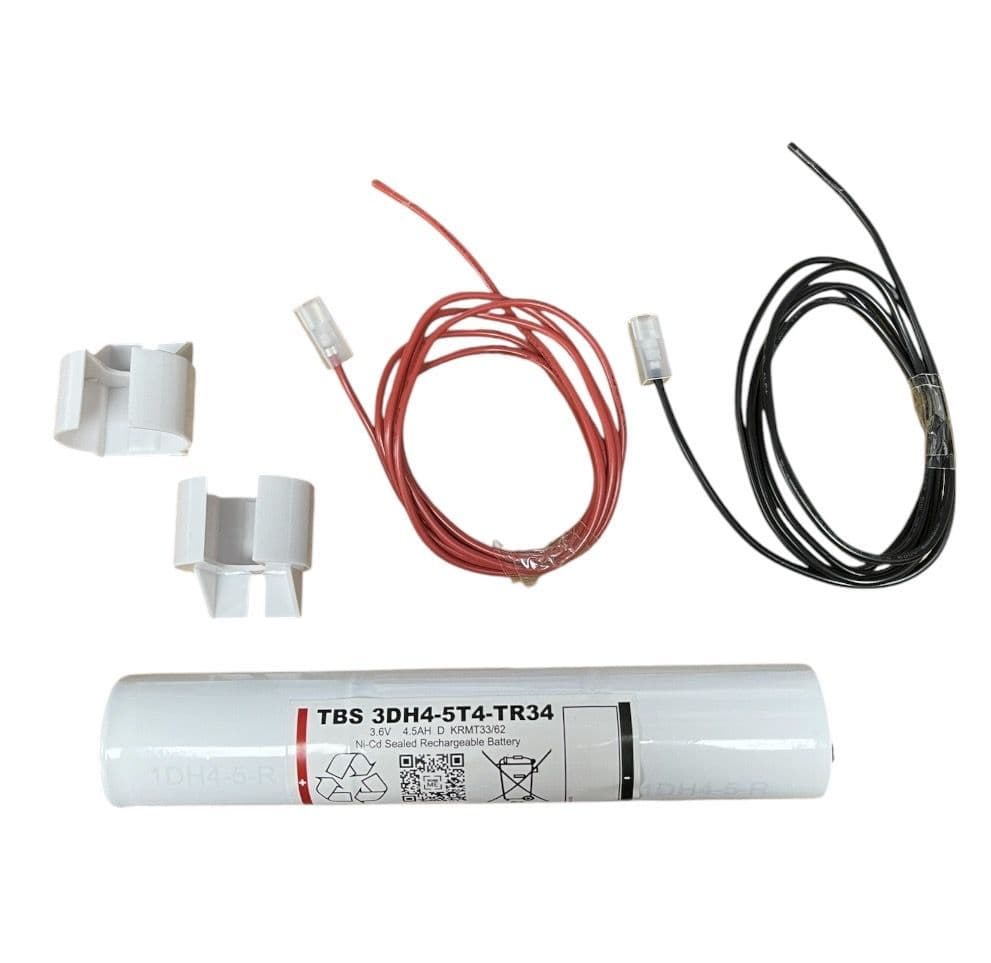

Kit contains:
1 x TBS 3DH4-5T4-TR34, 3.6v 4.5Ah battery pack.
2x Single D Cell end caps,
1x Red and 1x Black lead set with 4.8mm wide female faston push fit style connectors

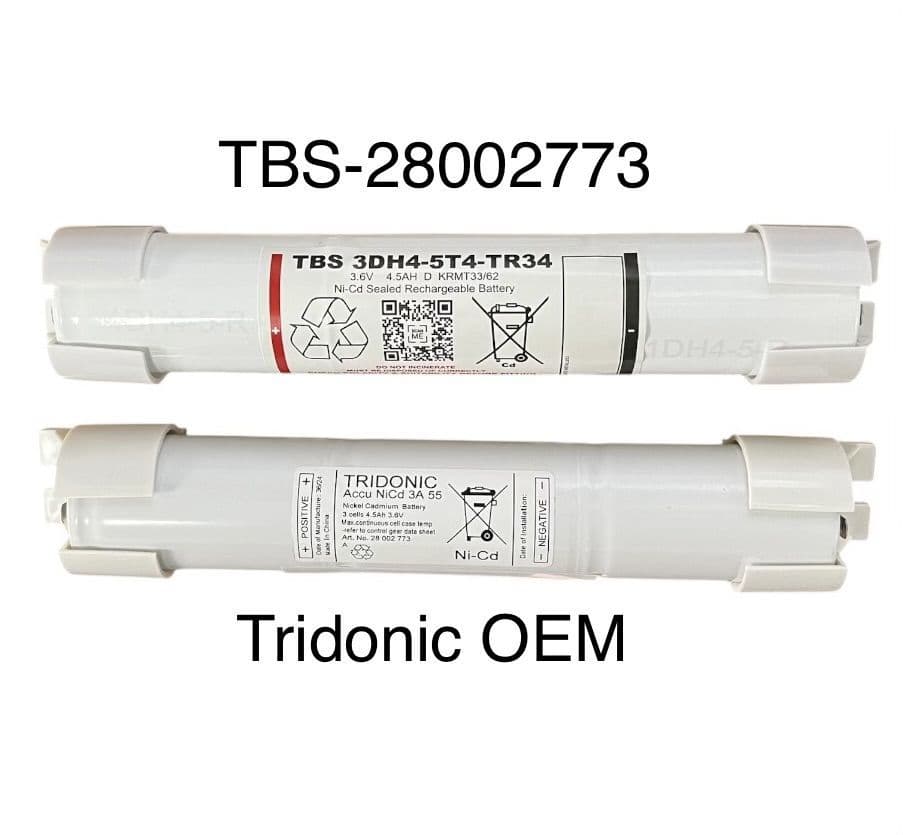

This is our TBS alternative to the discontinued "Tridonic 28002773 Accu NICD 3A 55 3.6v 4.5Ah Stick Battery Pack", please note : Tridonic has used this part number for battery packs using 4.0ah,4.2ah and 4.5Ah cells as improvements were made over time, our battery packs are made with the higher 4.5Ah capacity cells.
Battery Part Number : TBS 3DH4-5T4-TR34
Kit number : TBS-28002773
Chemistry : Ni-Cd, Nickel Cadmium
Voltage : 3.6v
Capacity : 4.5Ah
Dimensions of battery pack excluding end caps :
Length: 180mm (+/-5mm)
Diameter : 33mm (+/-2mm)
Dimensions of battery pack including end caps :
Length (+/- 5mm): 207mm
Width (+/- 5mm): 36mm
Height (+/- 5mm) : 35mm
Hole Spacing (+/- 5mm): 185mm
Pack Type: Standard Emergency Lighting Pack.
This battery may be a possible alternative fitment for the following Tridonic drivers, these are given as reference and you will need to check the actual fitment and existing battery before ordering as variations to fitment do occur:
Driver Part name Driver Article number Duration
EM powerLED BASIC FX 233 lp 75W 220V 89800601 3hr
EM pLED BASIC FX 102 SC MH/NiCd 32W 50V 89800688 3hr
EM powerLED PRO DIM 103 C NiCd 45W 50V 89800433 3hr
EM powerLED PRO DIM 103 SR NiCd 45W 50V 89800434 3hr
EM powerLED ST FX 103 C NiCd 45W 50V 89800431 2hr / 3hr
EM powerLED ST FX 103 SR NiCd 45W 50V 89800432 2hr / 3hr
Please note : This list is not exhaustive, this battery part may fit other drivers that are not listed above. Although care has been taken to curate the references above data may have changed or become outdated over time, Always check suitability before purchase against existing battery fitted. If you are unsure further details and datasheets are available on the manufacturers website.
Always check specification and suitability before ordering, It is the responsibility of the purchaser to check that the battery / accessory is suitable before ordering.
About Ni-Cd / Ni-Mh Batteries supplied by The Battery Shop
Here at The Battery Shop we supply many replacement Emergency lighting batteries, we can supply batteries direct from manufacturers, and we have inhouse assembly facilities for our own customised battery packs, and assemble alternatives to battery packs that have been discontinued by Emergency lighting manufacturers.
All Ni-Cd batteries supplied by The Battery Shop are sold for emergency lighting use within the UK only, and are not available for purchasing inside the European Union.
Our batteries and battery packs are NOT to be used in any inflammable, hazardous or gas tight areas.
Please ensure that you are ordering the correct products, always check the battery specification (eg voltage, capacity, chemistry, battery type, connector, size etc) against your existing battery before ordering.
Once fitted batteries must be allowed a minimum of 72 hours to charge before testing.
All old Batteries /products must be disposed of as per regulations in your area please do not place in normal waste.
