TBS 5CMH4-0LC9-GL125 6.0v 4.0Ah Ni-Mh Battery (5CMH4-0LA9, B034)

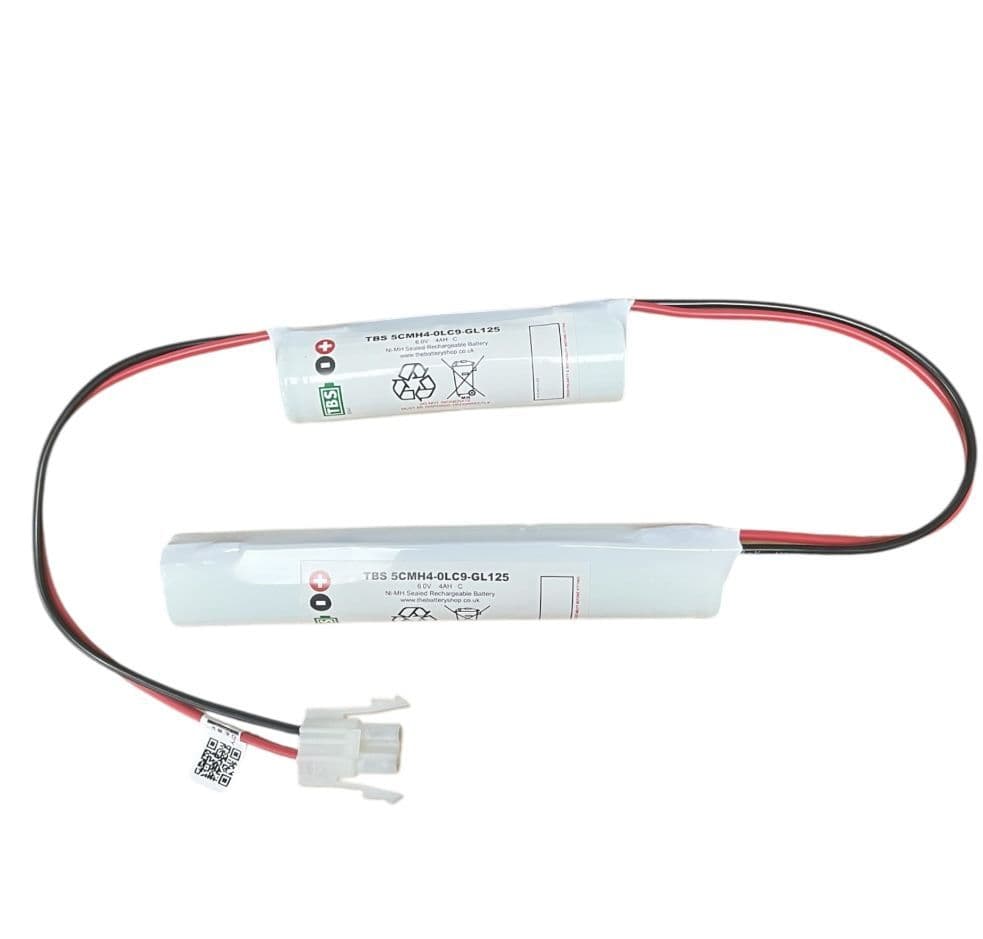

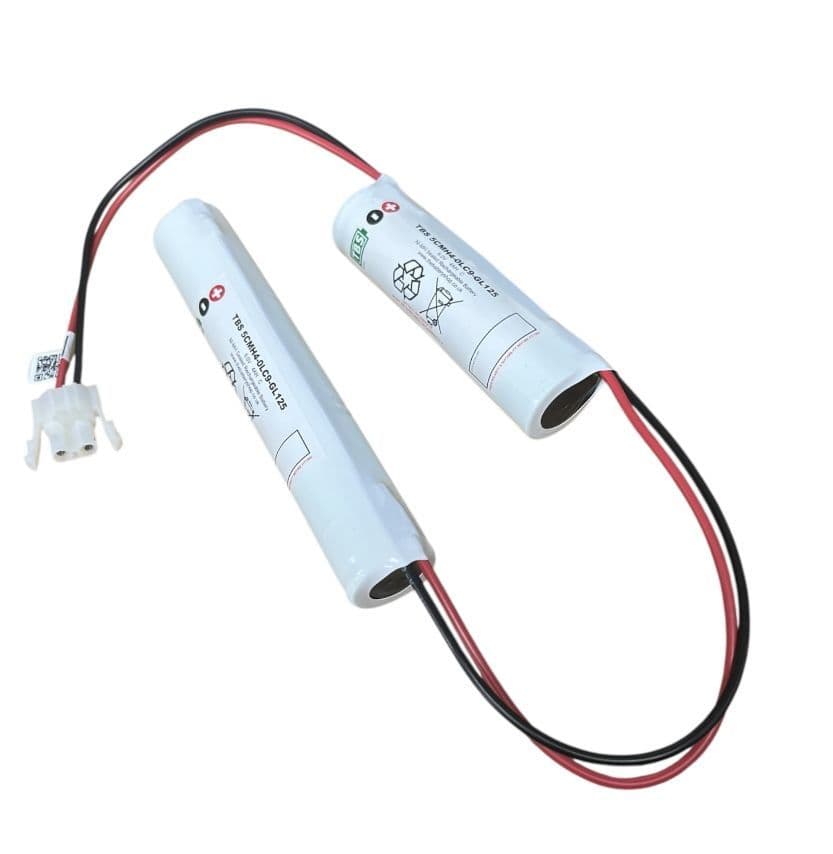

5 C Battery pack, in format of 3 C cell stick linked to 2 C cell stick with leads with GL125 AMP connector, wired + Pin 1
Model : TBS 5CMH4-0LC9-GL125
Chemistry : Ni-Mh, Nickel Metal Hydride
Voltage : 6.0v
Capacity : 4.0Ah
Dimensions of battery pack :
Length (+/- 5mm): 145mm + 97mmmm
Diameter (+/- 5mm): 26mm
Terminals : Leads with GL125 AMP connector, wired + Pin 1
Battery Type: Ni-Mh battery for use in emergency lighting.
Possible cross reference / replaces old or discontinued part numbers :
TBS 5CHM3-8LC9-GL125 (Old part used 3.8Ah cells, new 4.0Ah)
TBS 5CMH3-8LC9-GL125 (Old part used 3.8Ah cells, new 4.0Ah)
TBS 5CMH4-0LC9-GL125
TBS 5CHM4-0LC9-GL125
TBS 5CHM3-8LA9 (Old part used 3.8Ah cells, new 4.0Ah)
TBS 5CMH3-8LA9 (Old part used 3.8Ah cells, new 4.0Ah)
TBS 5CMH4-0LA9
TBS 5CHM4-0LA9
Emergency Lighting Products B034
Emergency Lighting Products ELP B034
Yuasa 5CHM4-0LA9
Yuasa 5CHM3-8LA9
Yuasa 5CMH4-0LA9
Yuasa 5CMH3-8LA9
ESP-2-09-216C
Always check specification and suitability before ordering, It is the responsibility of the purchaser to check that the battery / accessory is suitable before ordering.
TBS Battery packs
All Batteries, Battery packs and other items that have the prefix "TBS" are made, assembled or modified to order to order in our workshop.
These products will have a lead time for assembly, the length of this lead time will vary depending on the product, quantity ordered and current work schedule of orders in our workshop, most orders we turn around in 3-5 working days however at busy periods or larger quantities this may be extended.
Please ensure that you are ordering the correct product, these products will be made or modified to order and we are unable to cancel orders once they are placed or refund any incorrectly ordered made or modified to order items. This does not affect your ability to return faulty items.
To ensure that you are ordering the correct products always check the battery specification (eg voltage, capacity, chemistry, battery type, connector, etc) against your existing battery.
