NOTE : TRIDONIC HAVE DISCONTINUED THIS PART AND IT IS NOW OBSOLETE.
WE CAN SUPPLY OUR OWN VERSION AS AN ALTERNATIVE, SEE TBS 4DH4-5T4-SP34
CLICK HERE FOR DETAILS

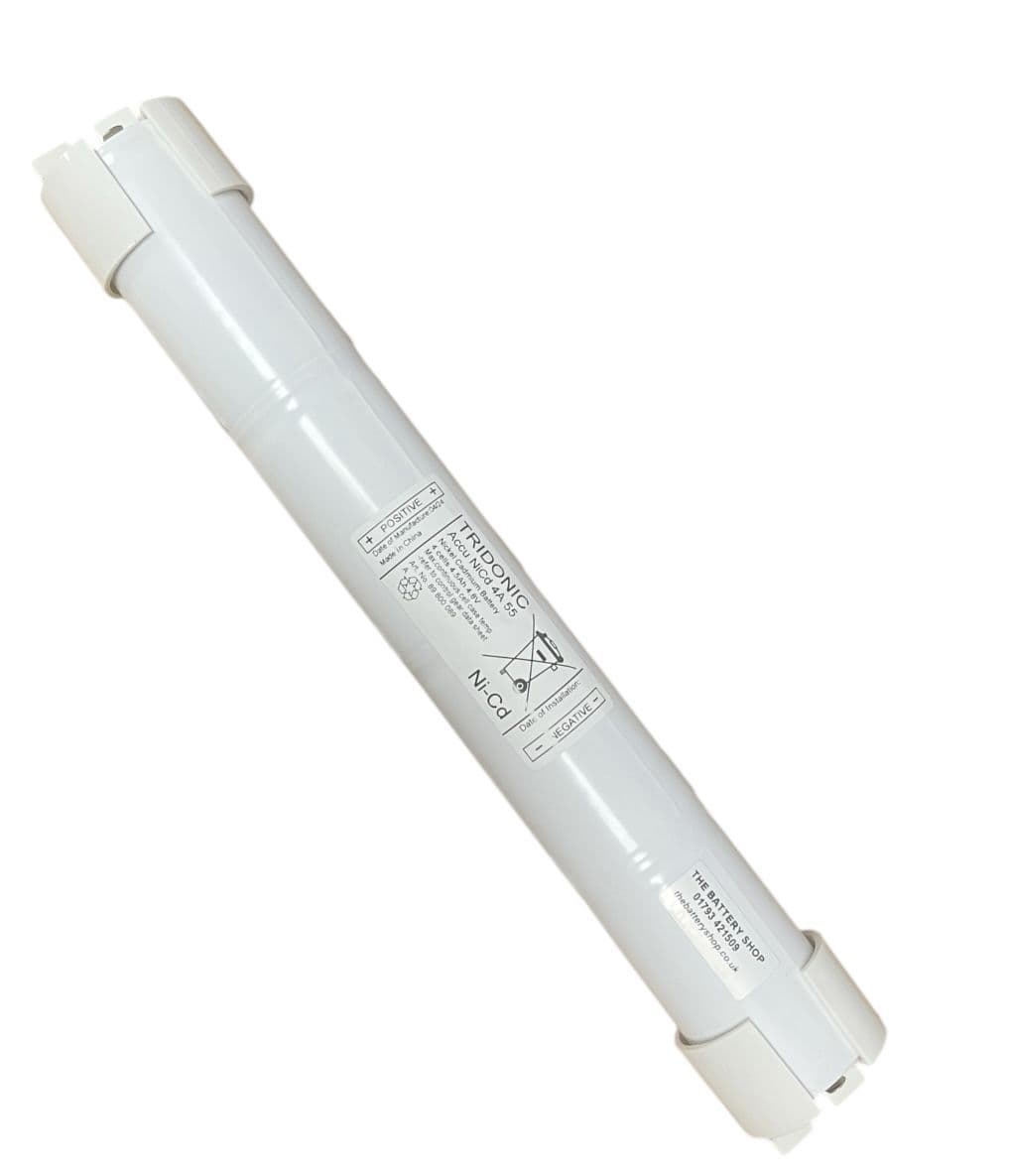

Tridonic 89800089 Accu NICD 4A 55 4.8v 4.5Ah Stick Battery Pack

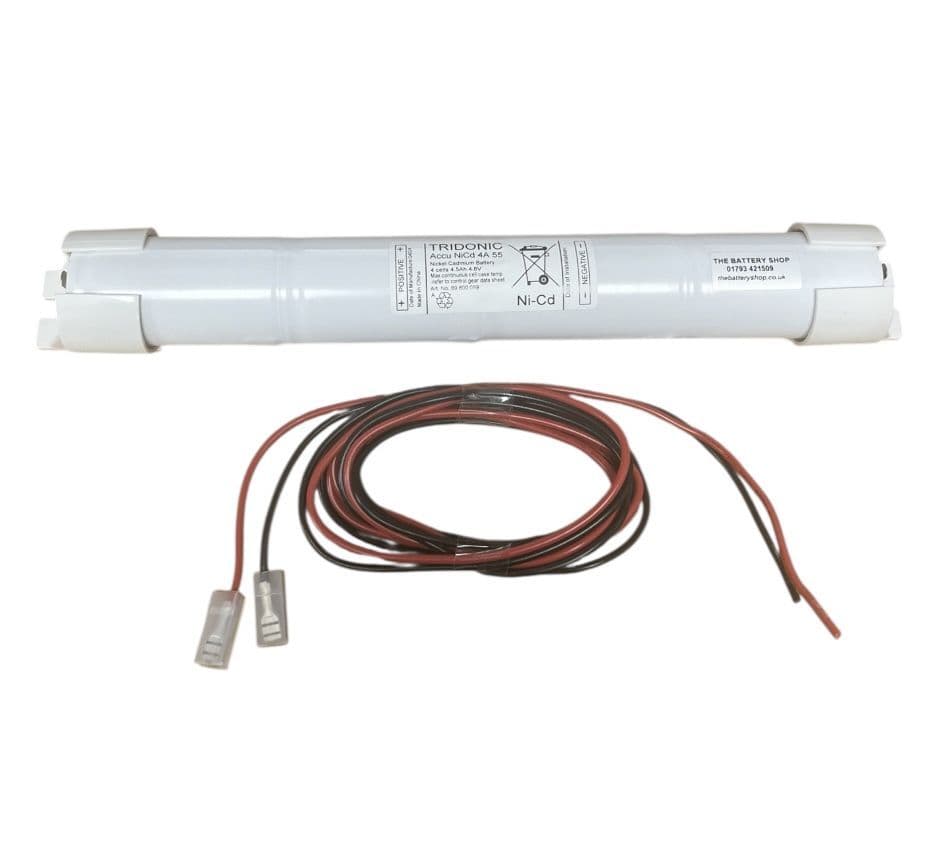

Genuine Tridonic 89800089 Accu 4A 55 replacement emergency lighting battery pack with 4.8mm tagged ends, comes with ends caps and red/black lead set.
Please note this battery is now 4.5Ah which is a higher capacity when compared to some older now superseded lower capacity versions of this battery, old versions may be 4.0Ah, 4.2Ah, 89800085, 89 800 085,
This battery is listed for the following Tridonic drivers:
Driver Part name Driver Article number Duration
EM powerLED BASIC FX 234 lp 75W 220V 89800602 3hr
EM powerLED PRO DIM 104 C NiCd 45W 50V 89800415 3hr
EM powerLED PRO DIM 104 SR NiCd 45W 50V 89800416 3hr
EM powerLED ST FX 104 C NiCd 45W 50V 89800413 2hr / 3hr
EM powerLED ST FX 104 SR NiCd 45W 50V 89800414 2hr / 3hr
Please note : This list is not exhaustive, this battery part may fit other drivers that are not listed above. Although care has been taken to curate the references above data may have changed or become outdated over time, Always check suitibility before purchase against existing battery fitted. If you are unsure further details and datasheets are available on the manufacturers website.
Tridonic Accu NiCd 4A 55
Nickel Cadmium Battery
4 cells 4.5Ah 4.8v
Art. No. 89 800 089
Article Number : 89800089
Art. No. 89 800 089
Part : Accu - NICD 4A 55
Chemistry : Ni-Cd, Nickel Cadmium
Voltage : 4.8v
Capacity : 4.5Ah
Dimensions of battery pack excluding end caps :
Length (+/- 5mm): 248mm
Diameter (+/- 5mm): 33mm
Dimensions of battery pack including end caps :
Length (+/- 5mm): 270mm
Width (+/- 5mm): 36mm
Height (+/- 5mm) : 35mm
Hole Spacing (+/- 5mm): 244mm
Note: The dimensions listed above are from stock we have physically measured and may vary slightly depending on available stock, or from measurements on datasheets, always check suitability against existing battery packs before ordering.
Replacement battery pack for Tridonic Emergency Lighting / switch gear / control gear, for specific units that this is suitable for please see manufacturers website.
Product description
High-temperature NiCd cells for use with emergency lighting units
Please note that due to EU law, this article is available for purchasing only outside of the European Union.
Properties
Constant high-temperature operation – depending on the emergency lighting unit used (refer to respective emergency control gear data sheet)
Good charging properties at high temperature
High energy maintenance of the charged battery
Certified quality manufacturer
In various configurations

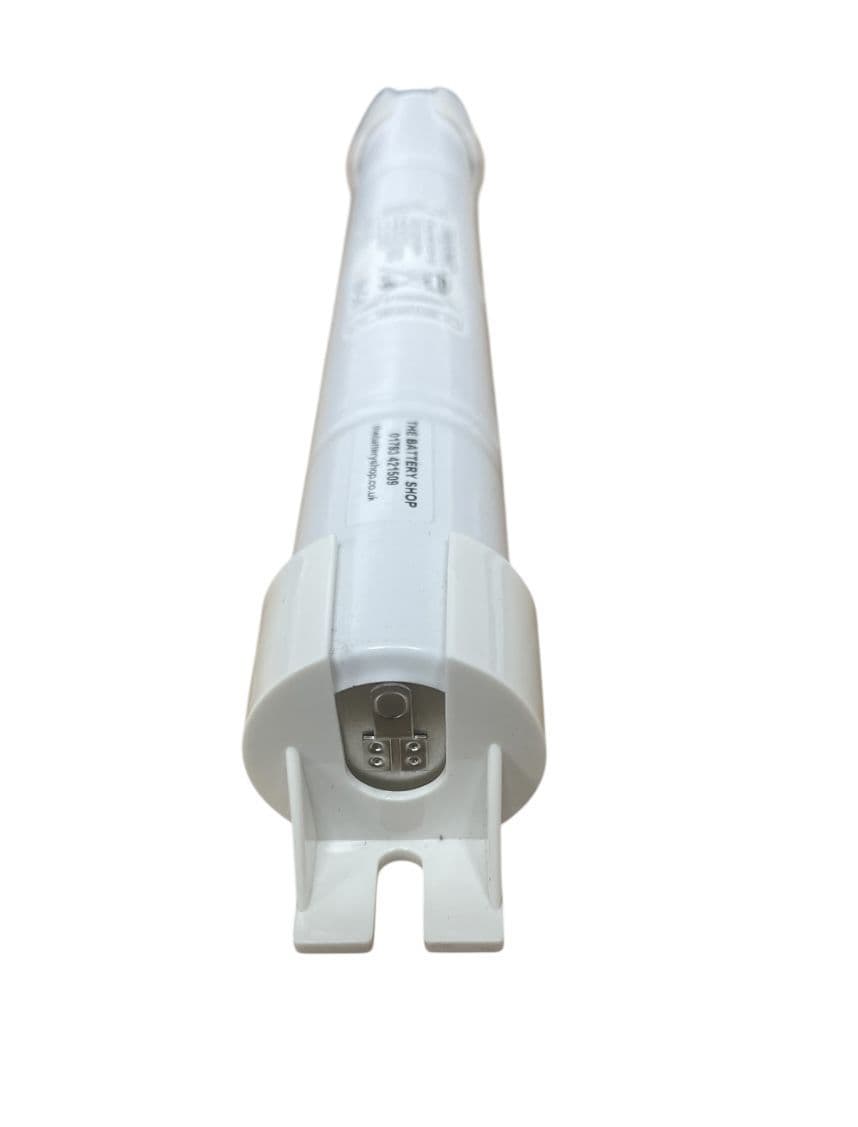

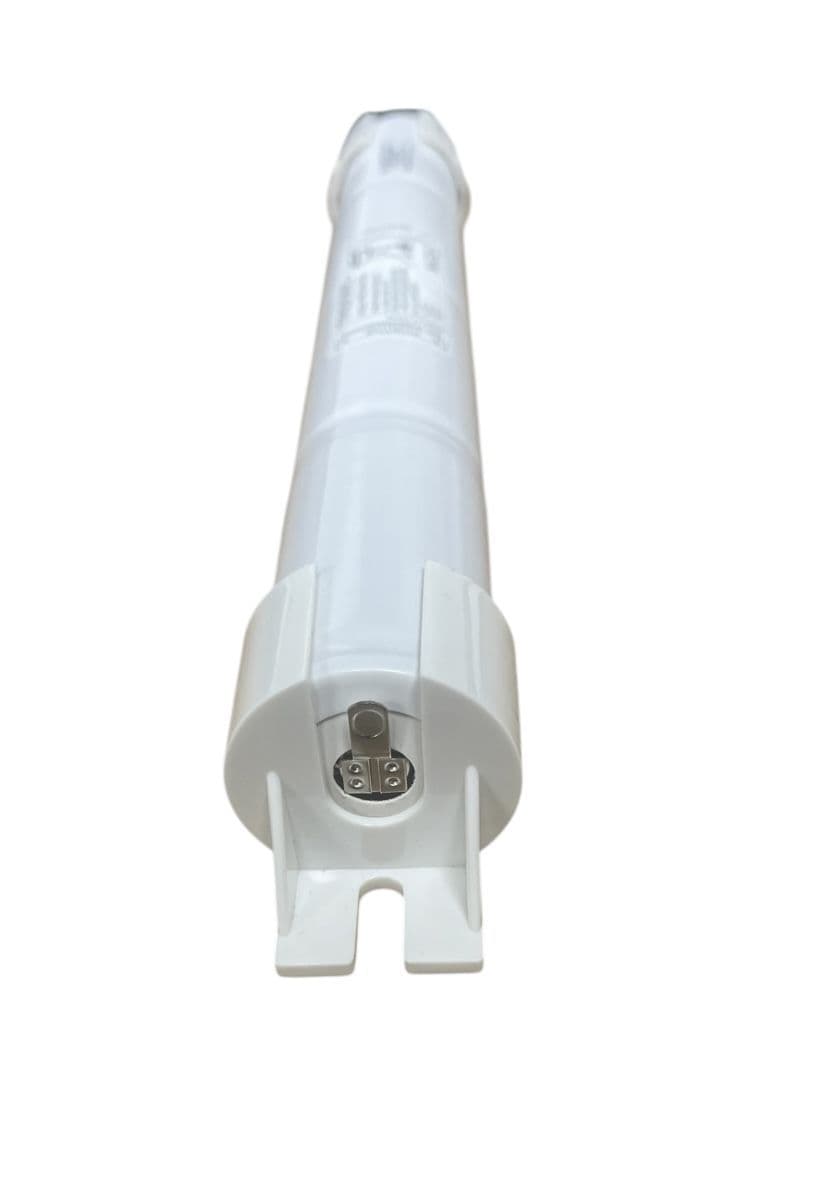

Simple connection with blade terminal respectively plug terminal
With polycarbonate fixing caps and connecting cable
Electrical connection with mounted end caps possible
Suitable for emergency lighting equipment as per IEC 60598-2-22
About Ni-Cd Batteries supplied by The Battery Shop
Here at The Battery Shop we supply many replacement Emergency lighting batteries, we can supply batteries direct from manufacturers, and we have inhouse assembly facilities for our own customised battery packs, and assemble alternatives to battery packs that have been discontinued by Emergency lighting manufacturers.
All Ni-Cd batteries supplied by The Battery Shop are sold for emergency lighting use within the UK only, and are not available for purchasing inside the European Union.
Our batteries and battery packs are NOT to be used in any inflammable, hazardous or gas tight areas.
Please ensure that you are ordering the correct products, always check the battery specification (eg voltage, capacity, chemistry, battery type, connector, size etc) against your existing battery before ordering.
Once fitted batteries must be allowed a minimum of 72 hours to charge before testing.
All old Batteries /products must be disposed of as per regulations in your area please do not place in normal waste.
