NOTE : USE THE YUASA YBX3642 BATTERY TO REPLACE OLD YAUSA NUMBER : 640HD, 640SHD
USE THE YBX3642 AS A HIGHER SPECIFICATION ALTERNATIVE TO THE YBX3640.
Use the YBX3642 over the YBX3640 when fitting to:
- LAND ROVERS
- THWAITS DUMP TRUCKS
- Any plant equipment.
The YBX3642 has an extra plate in the battery, fitting the lower specification YBX3640 / 640HD (or equivalent part in other brands) on these applications can lead to premature failure or poor performance from the battery.

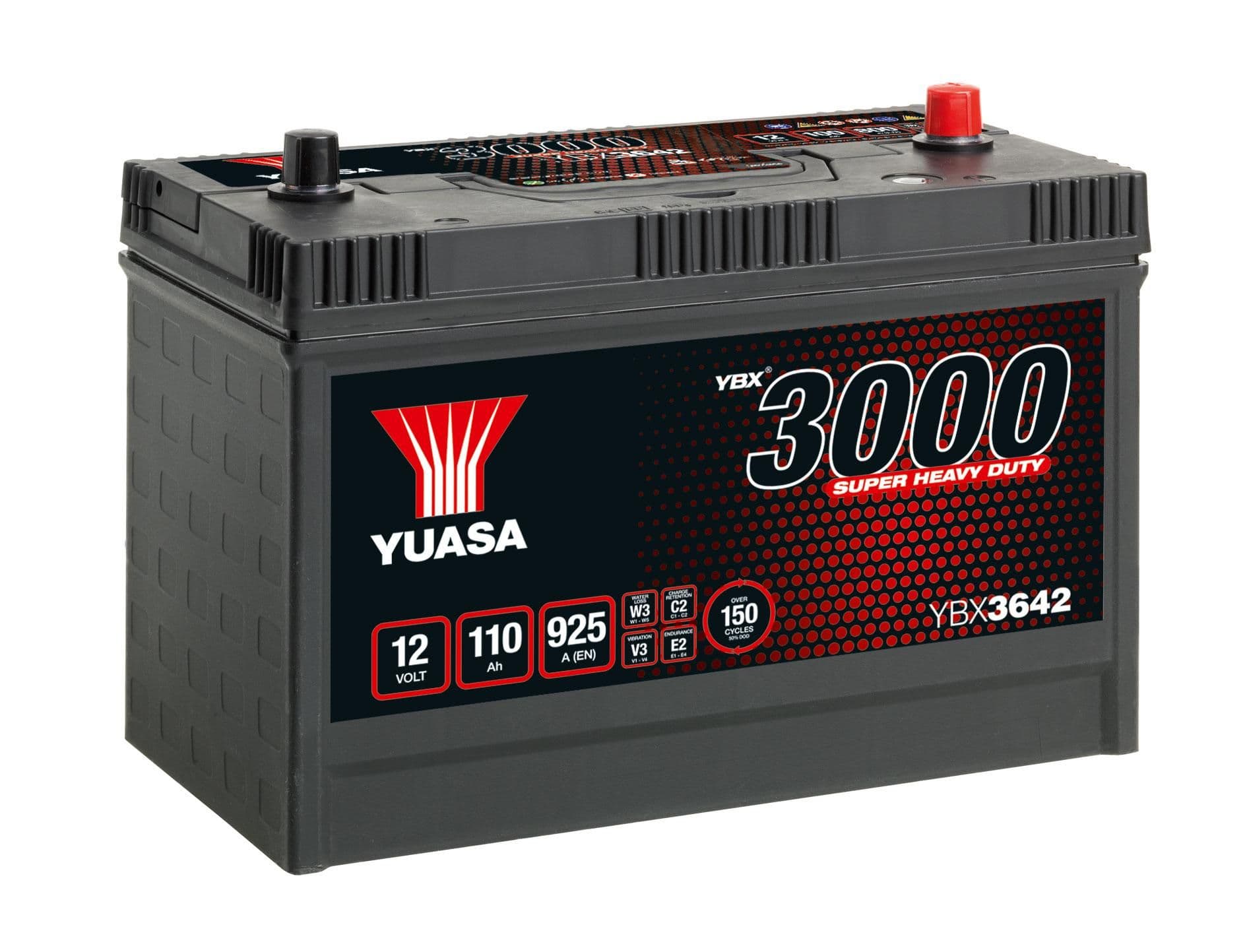

Yuasa YBX3642 12v 110Ah 925A Super Heavy Duty Battery (YBX3640, 640HD, 640SHD)Brand: Yuasa
Range: YBX 3000 Super Heavy Duty Battery
Part Number: YBX3642
Alternative Reference: 640SHD
Voltage : 12v
Ampere-Hour Capacity at 20hr rate Ah: 110Ah
Cold Cranking Performance (Amps) SAE/EN1: 925A
Dimensions
Length : 329mm
Width : 173mm
Height : 240mm (over terminals)
Case Type GR31A BCI
Voltage 12V
Capacity at 20-hour Rate (Ah) 110
Cold Cranking Performance (Amps) EN1 925
Mean Weight with Acid (kg) 25
Cell Layout 9
Terminal T1
State of Charge Indicator Yes
Water Loss W3
Charge Retention C2
Vibration V3
Endurance E2
Terminal Type T1
Length (mm) 329
Width (mm) 173
Height (mm) 240
NCC Class N/A
Can be used to replace or as an upgrade from :
Banner -
Bosch -
Exide - EG110B
Lucas C31-900, C31-1000
Numax C31-900, C31-1000
Oldham -
Platinum 642X
Varta 605 105 080 (Varta Battery has base hold clamp, check fitment for suitability)
Varta Short code -
Yuasa 665HD, 665SHD, YBX3665
Other: TY25803, TY6128, TY21751, TY25879, TY21767, 729 10642
About Yuasa YBX 3000 Super Heavy Duty Commercial Vehicle Batteries -Designed for vehicles with standard power demands
-For occasional overnight stops where hotel-loads are applied-
-V4 vibration resistance & are suitable for end of chassis location
-E2 Endurance rating up to 150 cycles (50% DOD)
-Fully maintenance free with sealed double lid
-End venting for remote exhaust of gases
-Low self-discharge rate for extended shelf life
Yuasa YBX Super Heavy Duty batteries feature:-Original equipment (OE) quality, performance & specification
-Specially designed & constructed for the rigours of commercial, agricultural & plant vehicle applications
-Enhanced safety features including integrated flame arrestor & carrying handles
About The Newly Launched Yuasa Commercial Vehicle Battery Ranges Yuasa delivers new YBX Super Heavy Duty battery range for commercial vehiclesGS Yuasa Battery Europe Ltd have launched their all new Yuasa YBX Super Heavy Duty battery range for commercial vehicles. The four-tiered range is available now and provides one of the most comprehensive and highest specification offers on the market.
Based on the battery manufacturers market leading YBX automotive ranges, Yuasas new Super Heavy Duty range replaces Yuasas Cargo ranges. It features three levels of conventional flooded types, plus Enhanced Flooded Battery (EFB) options.
Yuasas commercial vehicle batteries are already trusted by leading commercial vehicle manufacturers who demand the best and fit GS Yuasa batteries as standard. The new YBX Super Heavy Duty range has been developed to meet the increasing specifications of these top vehicle brands.
Featuring the very latest technology and a host of advanced safety features, all batteries in the range are of Original Equipment (OE) quality and performance. Their advanced construction and unparalleled innovation make them the most reliable commercial vehicle batteries Yuasa has ever produced.
The batteries are among the first in the UK and Ireland to carry EN50342-1/6 European Standard performance markings which were recently introduced. Every battery in the range has undergone extensive performance testing and having passed stringent requirements, has earned a classification number for Water Loss (W1 W5), Charge Retention (C1 C2), Vibration Level (V1-V4), Endurance (E1 E4) or Micro Cycle performance (M1 M3).
Batteries in the YBX7000 EFB and YBX5000 ranges feature Yuasas XVR Extreme Vibration Resistance. This means that they have a vibration resistance of over eight times V4. V4 is the highest level rating that European standard EN50342 requires. Batteries in these ranges, plus all YBX3000 DIN types, are suitable for rear chassis location fitting.
YBX7000 EFB are the premium choice for high power demands, end of chassis location and are also suitable for vehicles with Start Stop. Built with EFB technology, they feature an electrolyte mixing device to extend battery life and are ideal for frequent overnight stays where hotel loads are applied. Batteries in the range are sealed maintenance free (SMF) with a sealed lid, have XVR and offer an M1 micro-cycle endurance rating.
YBX5000 batteries are designed for high performance vehicles with high power demands and for regular overnight stays with hotel loads.
They have an M1 micro-cycle endurance rating, XVR and are SMF. They are also suitable for end of chassis location.
YBX3000 types are the ideal choice for vehicles with standard power demands and occasional overnight stops. These SMF types have an E2 endurance rating. They also have a superior vibration resistance rating of V3 with DIN types being V4 and suitable for end of chassis location.
YBX1000 types are maintenance free with easy access lid plugs. Designed for vehicles with basic power demands, they have high vibration resistance of V2 and an E2 endurance rating.
